M.F. full bore universal ball valve with red padlockable lever handle
M.F. full bore universal ball valve with red padlockable lever handle

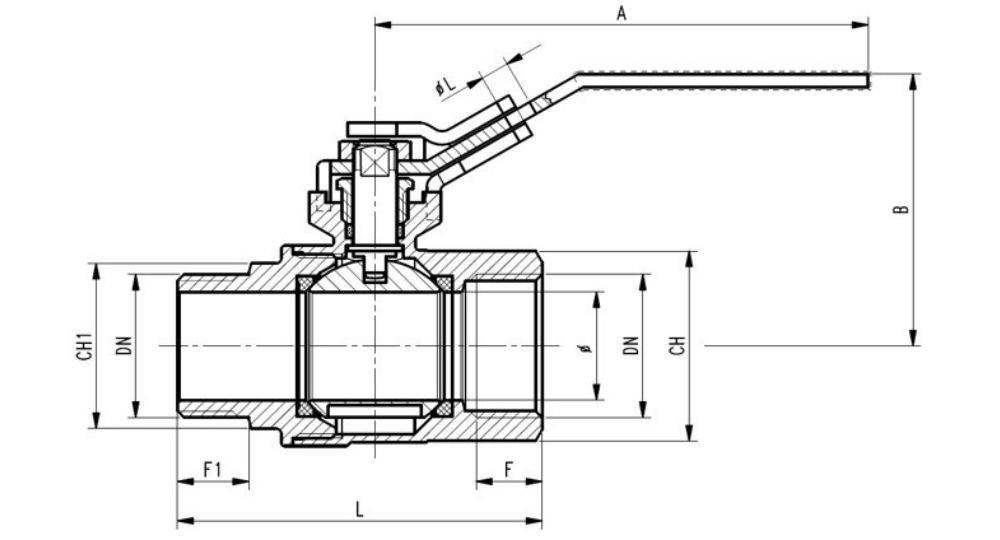

| Cod. | 0856/04LK | 0850/05LK | 0850/06LK |
| DN e PASS mm | 1/2″ (15) | 3/4″(20) | 1″( 25) |
| L | 56 | 66.5 | 78 |
| B | 47 | 51 | 65 |
| F | 10.5 | 12 | 13.5 |
| F1 | 11 | 13 | 15 |
| CH | 25 | 31 | 38 |
| CH1 | 22 | 27 | 34 |
| ØL | 5 | 5 | 5 |
| A | 90 | 90 | 116 |
