Universal full bore M.F. ball valve with plastic extension – red indicator
Universal full bore M.F. ball valve with plastic extension – red indicator

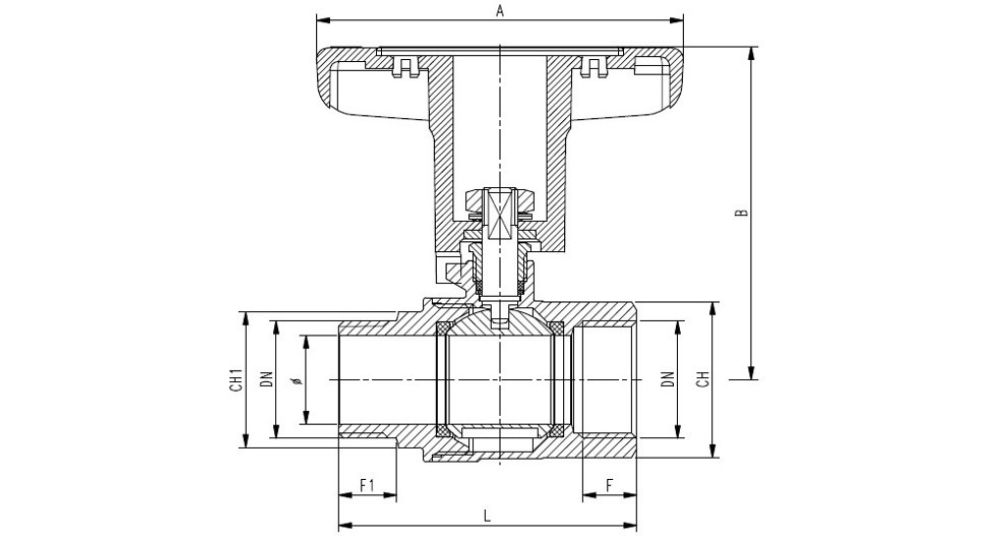

| Cod. | 0856/04IS | 0856/05IS | 0856/06IS | 0856/07IS | 0856/08IS | 0856/09IS |
| DN e PASS mm | 1/2″ (15) | 3/4″(20) | 1″( 25) | 1″1/4 (32) | 1″1/2 (40) | 2″ (50) |
| L | 56 | 66.5 | 78 | 91 | 102 | 119 |
| B | 71.5 | 75 | 82.5 | 110 | 116 | 126 |
| F | 10.5 | 12 | 13.5 | 15.5 | 15.5 | 19 |
| F1 | 11 | 13 | 15 | 16 | 17 | 18 |
| CH | 25 | 31 | 38 | 47 | 54 | 66 |
| CH1 | 22 | 27 | 34 | 42 | 48 | 60 |
| A | 82 | 82 | 82 | 110 | 110 | 110 |
