686/AC
Industrial ball valve full bore M.F. with blue handle (screwed iron) for compressed air. EN10226 THREAD
MATERIALS AND CHARACTERISTICS
WORKING CONDITIONS

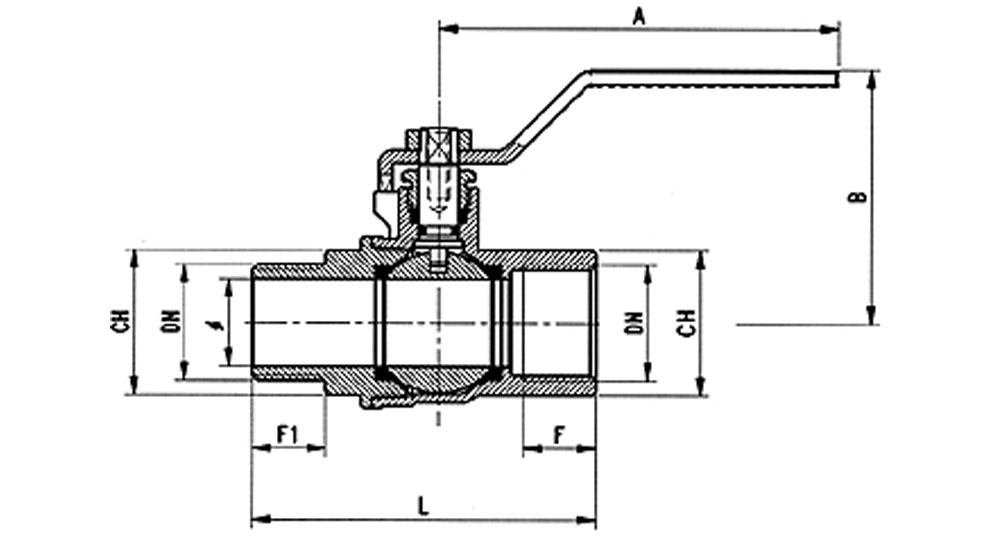

TECHNICAL DATASHEET
| Cod. | 0686/04AC | 0686/05AC | 0686/06AC |
| DN e PASS. mm | 1/2” (15) | 3/4” (20) | 1” (25) |
| L | 67,5 | 77,5 | 87,5 |
| B | 53,5 | 57,5 | 66,5 |
| F1 | 15 | 16,3 | 19,1 |
| F | 15 | 16,5 | 19,5 |
| CH | 26 | 31 | 38 |
| A | 90 | 90 | 125 |
TECHNICAL DATASHEET
