682/AC
Industrial ball valve full bore F.F with blue butterfly handle for compressed air. EN10226 THREAD
MATERIALS AND CHARACTERISTICS
WORKING CONDITIONS
TECHNICAL DATASHEET

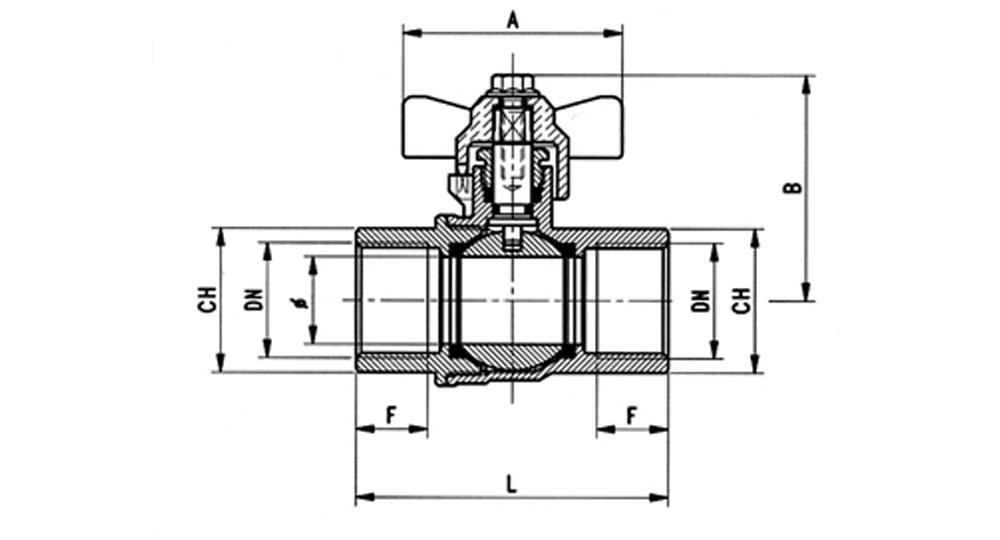

| Cod. | 0682/02AC | 0682/03AC | 0682/04AC | 0682/05AC | 0682/06AC |
| DN e PASS. mm | 1/4” (10) | 3/8” (10) | 1/2’’ (15) | 3/4” (20) | 1” (25) |
| L | 46,5 | 46,5 | 62 | 71 | 81,5 |
| B | 37,5 | 37,5 | 48 | 52 | 62,5 |
| F | 10 | 10 | 15 | 16,3 | 19,1 |
| CH | 21 | 21 | 26 | 31 | 38 |
| A | 50 | 50 | 50 | 50 | 65 |
TECHNICAL DATASHEET
