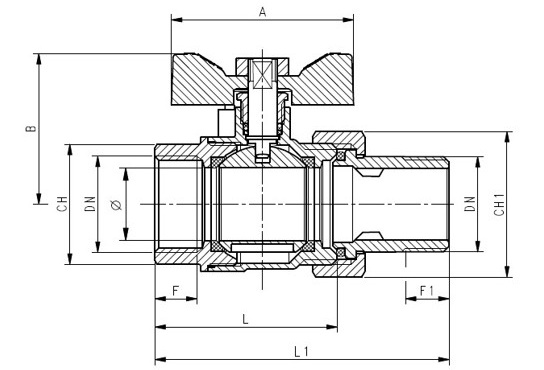

Full bore F. ball valve with male union O-ring seal.
Full bore F. ball valve with male union O-ring seal.
| Cod. | 0600/04 | 0600/05 | 0600/06 | 0600/07 |
| DN e PASS. mm | 1/2” (15) | 3/4” (20) | 1” (25) | 1”1/4 (32) |
| L | 42,5 | 50 | 58 | 74 |
| L1 | 69,5 | 81 | 92 | 112,5 |
| B | 38 | 41,5 | 53,5 | 66,5 |
| F | 10 | 11,5 | 13 | 15,5 |
| F1 | 10 | 12 | 14 | 15 |
| CH | 25 | 31 | 38 | 47 |
| CH1 | 30 | 37 | 46 | 53 |
| A | 50 | 50 | 60 | 65 |
