GIUNTO/W85
Giunto antivibrante per flange. PN10

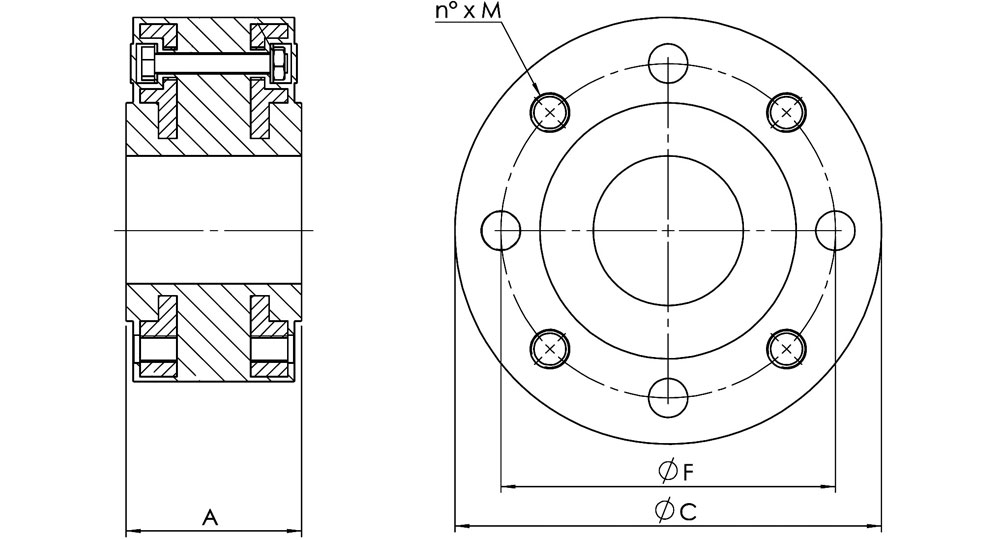

| Cod. | W85/07 | W85/08 | W85/09 | W85/10 | W85/11 | W85/13 | W85/14 | W85/15 | W85/16 |
| DN | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| A | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 90 |
| C | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 |
| F | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 |
| n x M | 4 x M16 | 4 x M16 | 4 x M16 | 4 x M16 | 8 x M16 | 8 x M16 | 8 x M16 | 8 x M20 | 8 x M20 |
