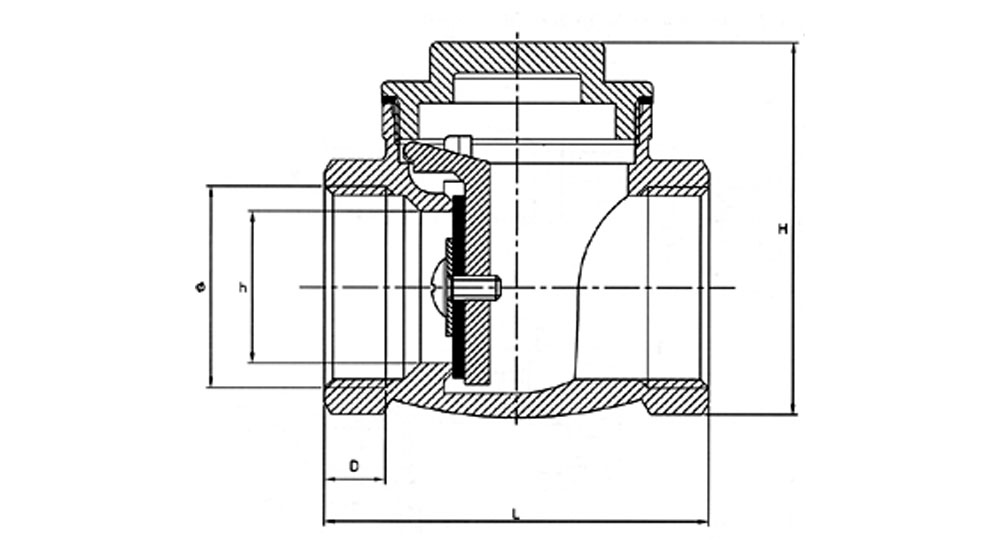

60/A
Valvola a clapet.Tenuta gomma.
| Cod. | 0060/A03 | 0060/A04 | 0060/A05 | 0060/A06 | 0060/A07 | 0060/A08 | 0060/A09 | 0060/A10 | 0060/A11 | 0060/A13 |
| DN mm | 3/8” | 1/2” | 3/4” | 1” | 1”1/4 | 1”1/2 | 2” | 2”1/2 | 3” | 4” |
| h | 10 | 15 | 20 | 25 | 33 | 37 | 47 | 55 | 70 | 90 |
| H | 46 | 46 | 51 | 61 | 73 | 85 | 94 | 107 | 130 | 159 |
| L | 47 | 47 | 53 | 63 | 74 | 87 | 97 | 118 | 135 | 164 |
| D | 8 | 8 | 8 | 10 | 10 | 10 | 11 | 16 | 16 | 20 |
SCHEDA TECNICA
